YWK-18/Ed explosion-proof pressure switch / pressure controller uses a  diaphragm type sensor, which is resistant to high pressure, has a long service  life and a compact structure. The shell is made of stainless steel, which is  strong and durable. At the same time, due to the use of special sensors.

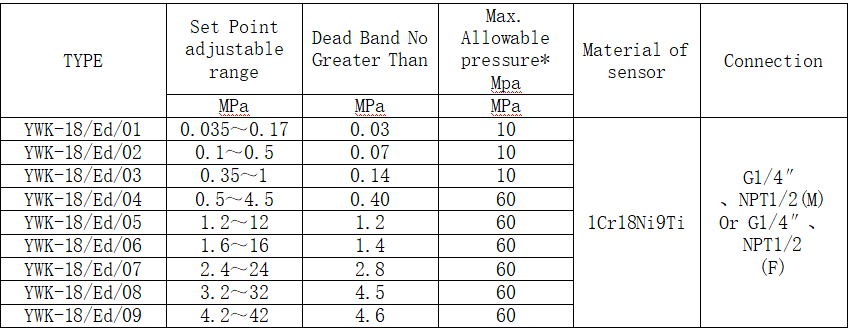

Specifications

Dead Band Non-Adjustable

Remark：①In the practice, even the temporal peak value of pressure ,should no  exceed the Max. Allowable Pressure.。

② If the Dead Band or the interface type has special requirements, it can be  designed separately.

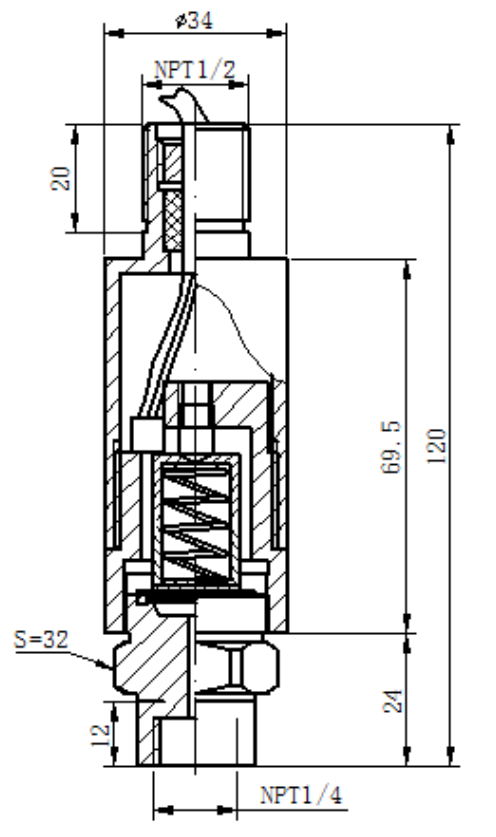

SIZE:
