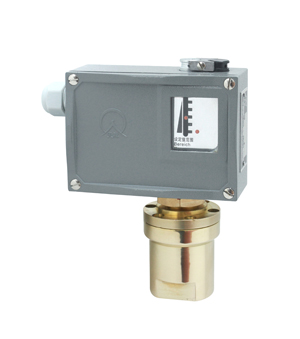

520/7DD Diff. Pressure Switch
Time:2017-06-29
Visits: 946

The sensor is Bellows.it can be suitable for air,gas,steem etc. neutral gas and water, oil and cryogen fluid medium.

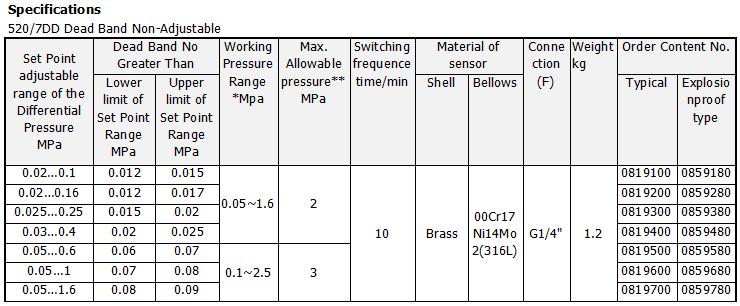

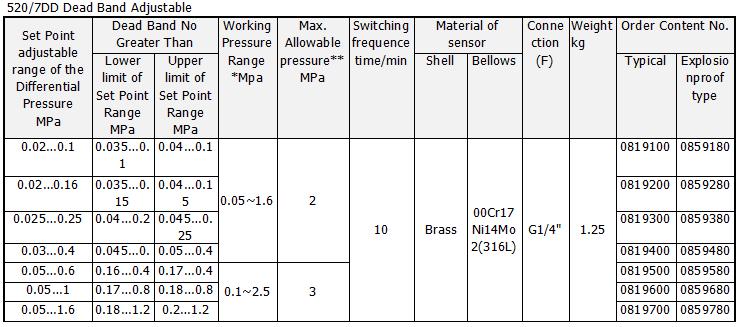

The Set Point is adjustable, the adjustable range from 0.02 to 1.6Mpa, the working pressure range is from 0.05 to 2.5Mpa.
