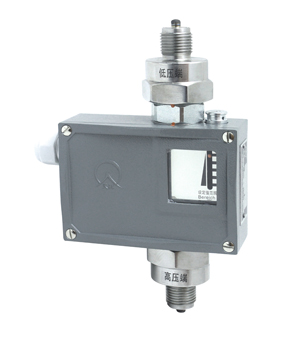

530/7DDK Diff. Pressure Switch
![](/uploads/140909/1-140Z91442543G.JPG)
The sensor of this switch is Bellows. Switch is suitable for corrosive gaseous and fluids medium.
Dead Band is Non-adjustable, the Adjusting Range is from 0.02 to 3Mpa, Working Pressure range is from 0.05 to 6.3Mpa..
![src=/uploads/allimg/170213/1-1F213113U2413.jpg style=width: 741px; height: 295px; /><br />
01<br />
<img alt=](/uploads/allimg/150116/1-150116102T43P.jpg)
02
![](/uploads/allimg/150116/1-150116102U5O9.jpg)
03
![](/uploads/allimg/150116/1-150116102Z5U6.jpg)
04
