Features
l Can be used to measure pressure,differential pressure,liquid level and flux
l Miniacture type stainless steel flange, easy to be installed
l Uniquely utilize H-alloy sleeve , achieves the superior cool and hot stability.
l Process connection is compatible with other products, to achieve best mesauring.
l Adopts 16-digital SCM technique.
l Standarded 4~20mA, with keyboard and RS-485 communication connector, field regulating.
l HART agreement is available.
l Can be used to measure pressure,differential pressure,liquid level and flux
l Miniacture type stainless steel flange, easy to be installed
l Uniquely utilize H-alloy sleeve , achieves the superior cool and hot stability.
l Process connection is compatible with other products, to achieve best mesauring.
l Adopts 16-digital SCM technique.
l Standarded 4~20mA, with keyboard and RS-485 communication connector, field regulating.
l HART agreement is available.

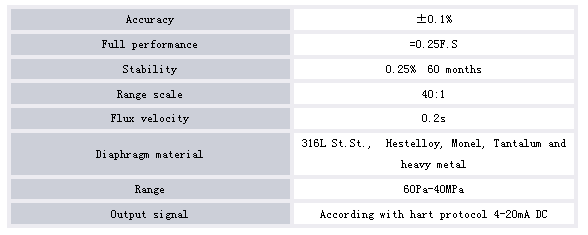

![](/uploads/allimg/170412/1-1F412105445M5.png)

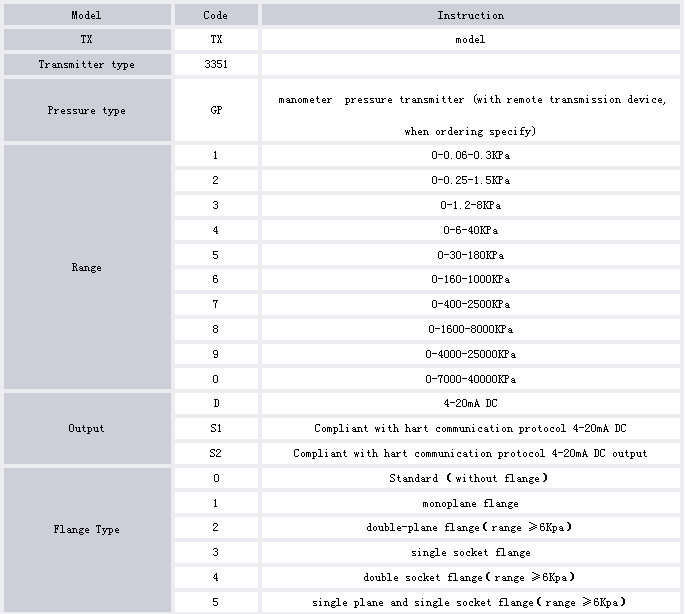

![](/uploads/allimg/170412/1-1F412111213941.png)

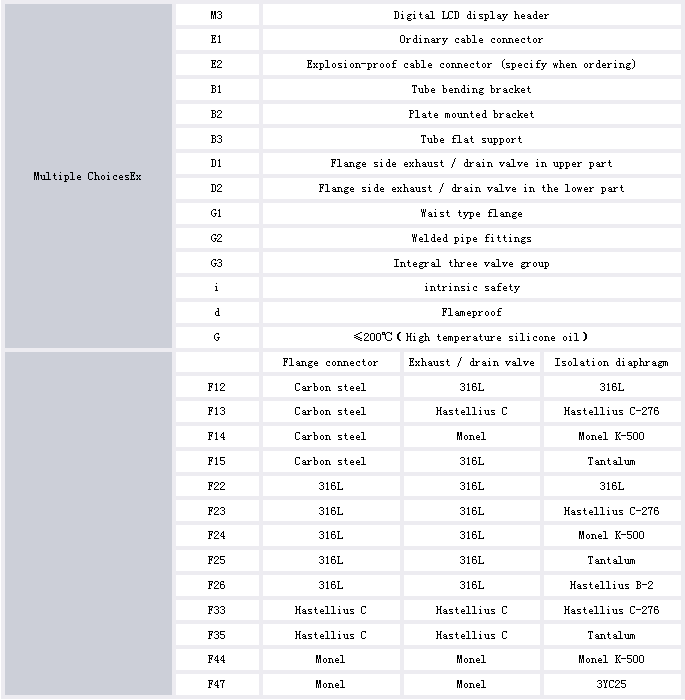

![](/uploads/allimg/170412/1-1F41211122Q35.png)
